Robotic cells for food and CPG plants

An OEM of robotic solutions and AI vision for primary and secondary packaging.

We also integrate palletizing, so one team can deliver the whole back end of your line.

For food and CPG lines. Buy outright or lease monthly. Start with a call with our engineers.

Blueprint view of a rexR robotic cell, drawn from the rexR machine rendering
rexR modular cellMove across the drawing to see the machine

Solutions

Built around your product.

Start with your product and pack format. Review line interfaces, changeover needs and installation constraints with our engineers.

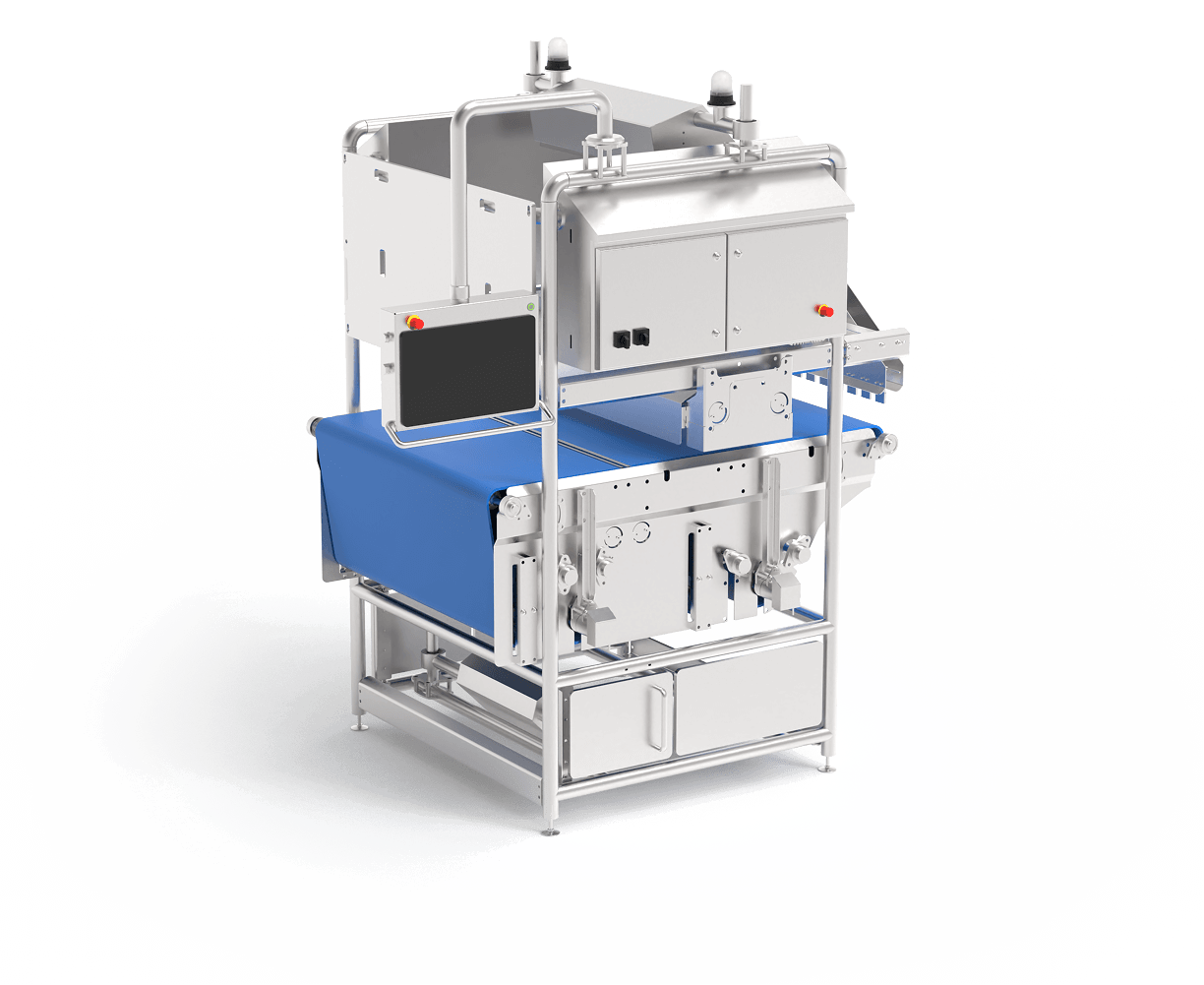

rexR inspection and rejection system, rendering
Inspection and rejection of individual products

AI vision inspection

Cameras inspect items from above and below. The system compares contour, dimensions, surface and color against a reference and triggers single-item rejection. Results go to your server.

AI vision inspection specifications
SpecValue
ThroughputUp to 300 pcs/min, depending on product size
Conveyor speedUp to 45 m/min, depending on product size
Machine visionTop and bottom, 2D and 3D
RejectionSingle-item; rejection error 0.2%
Labels and markingUp to 150 pcs/min; labels from 30 × 30 to 120 × 150 mm
Label scanningUp to 1 m/s; acquisition rate up to 14 kHz; reject decision within 200 ms
IntegrationOPC UA and discrete signals

Classical and deep learning algorithms, live video over RTSP, remote camera calibration, setpoint updates without stopping, on open-source Ubuntu Server.

Works with your controls

  • Rockwell Automation
  • Allen-Bradley
  • Bosch Rexroth ctrlX
  • Beckhoff
  • OPC UA
  • PackML

Industries

  • Meat
  • Poultry
  • Dairy
  • Confectionery
  • Fruits and vegetables
  • Health and nutrition
  • Bakery
  • Beverages
  • Home care

Tell us what you make and how it arrives. Our engineers will tell you what we would put on that line.

Talk to our engineers

How you buy

Buy outright, or lease monthly.

Path 1

Buy it outright.

Purchase the equipment and own it. It is your machine, on your floor, on your books.

Path 2

Robots as a Service.

Lease the equipment through Robots as a Service with a monthly payment. Review the term, scope and commercial conditions with our team.

Either way, it starts with your line. Every cell is engineered around your product, so the first step is a call with our engineers.

Talk to our engineers

Service

Remote support first, on-site when needed.

  • Remote firstThe control cabinet enables remote diagnostics via a built-in modem.
  • PartnerService and installation in the United States are delivered by our technical services partner, SkyForge Automation.

Start with your line

Talk to our engineers.

Bring your product and package, target production rate and line layout. The engineering call is a place to discuss application fit, interfaces and constraints, then the information needed for a concept and commercial proposal.

Talk to our engineers

The booking button opens our existing Calendly page. Availability and meeting details are confirmed there.

Abe Alassaf

Chief Business Development Officer

abe@rexr.tech

(740) 590-5352

Explore the cellOptional component walkthrough

Inside the cell

Inside the cell.

Choose a component or use the arrow buttons. Next and Previous play the camera transition; reduced motion uses still images.

See the real machine
Choose a part or use the arrows
  1. The complete rexR cell: modular frame with electrical cabinets, delta robots, conveyors and operator panel

    01The cell

    The rexR robotic and automation platform

    A modular, pre-fabricated frame designed to integrate components. Electrical, pneumatic and safety systems are pre-installed.

    Frame
    Modular, pre-fabricated
    Pre-installed
    Electrical, pneumatic, safety
    Software
    CV dataset, PackML and OEE support, motion algorithms
    Platforms
    Allen-Bradley, Bosch, Beckhoff
  2. The XFrame modular frame, highlighted

    02XFrame

    XFrame modular frame

    Built on the LEGO principle: plug, configure, operate. Interchangeable, standardized and scalable elements connect into the configuration your task needs.

    Frame footprints
    2 × 2 m and 1.5 × 1.5 m
    Reconfigure
    Replace or add individual modules. Our engineers scope the installation with you.
    Retrofit
    Expansion options for your existing line, scoped with our engineers.
    Tight spaces
    Review the footprint against your workshop layout
  3. Product feed and discharge conveyors

    03Conveyors

    Product feed and discharge conveyors

    They receive the product from the line conveyor, deliver it to the robot's working area, and keep spacing between packages in the outgoing flow.

    Product sensing
    Optical sensor detects product arrival
    Box conveyor
    Feeds corrugated boxes into the working area and out
    Box control
    Pneumatic system limits incoming boxes
    Material
    Main components in stainless steel
  4. Laser 3D vision unit mounted on the frame

    04Laser 3D vision

    Laser 3D vision

    Captures a 3D height map of each product, and works well with low-contrast objects such as white products on a white background.

    Imaging speed
    Conveyor speeds up to 1 m/s
    Output
    3D image, product height map
    Mounting
    No large enclosed box; installs in front of the robot's working area
    Example task
    Find the center of round white dough pieces on white baking paper
  5. Shadowless vision light bar above the conveyors

    05Shadowless vision

    Shadowless vision

    Structured light gives high-contrast images against the conveyor and its texture.

    Imaging speed
    Conveyor speeds up to 1 m/s
    Shadows
    Minimizes distortion from mutual shadows
    Overlap
    Minimizes overlapping of products
    Example task
    Detect high-sided products placed close together, to plan an even spray path
  6. Delta robot with its motors, gearboxes and parallel arms

    06Delta robot

    Delta robot, hygienic design

    Stainless gearboxes, IP66 gearboxes, IP65 motors, food-grade.

    Product movement
    Up to 10 m/s
    Payload
    Up to 6 kg
    Working area
    Up to 1,600 mm diameter
    Structure
    Anodized aluminum alloy, glass bead blasted, with composite materials
    Screw connections
    NSF P1 food-grade thread lockers
  7. Motor and planetary gearbox on the delta robot

    07Motors and gearboxes

    Motors and planetary gearboxes

    Three-phase synchronous motors with permanent magnets drive high-precision planetary gearboxes.

    Motors
    Three-phase synchronous, permanent magnet, IP65
    Gearboxes
    Planetary, high precision, stainless steel, IP66
    Software
    Motion algorithms
  8. Articulated manipulator arm inside the cell

    08Manipulators

    Manipulators

    rexR systems use standard production modules, including in-house delta robots and manipulators.

    Module type
    Actuation modules: grippers, manipulators, tools
    Built
    In house
    Expansion
    Expansion options for your existing line, scoped with our engineers.
  9. A row of product handling tools on a rail

    09Grippers

    Grippers

    Each gripper is custom-designed according to the customer's needs.

    Design
    Custom, per product
    Materials
    Stainless steel AISI 304, aluminum, polyacetal
    Speed
    Robust construction ensures high speed
    Hygiene
    Product-specific grippers in hygienic design
  10. Open electrical cabinet on top of the frame

    10Electrical cabinet

    Electrical cabinet and controls

    Controls the robot and all other electrical equipment, and enables remote diagnostics via a built-in modem.

    Control
    The robot and all other electrical equipment
    Remote
    Diagnostics via a built-in modem
    Software
    PackML-compliant, built with IndraWorks Engineering
    Platforms
    Allen-Bradley, Bosch, Beckhoff
  11. Power and protection components inside the cabinet

    11Power and protection

    Power and protection

    Power supply and distribution for all electrical equipment, inside the same cabinet.

    Power
    Supply and distribution for all electrical equipment
    Protection
    Circuit breakers and fuses on power and control systems
    Pre-installed
    Electrical, pneumatic and safety systems
  12. Operator panel on its support arm

    12HMI

    Operator panel (HMI)

    The rexR HMI environment with OPC UA connectivity, on a multi-touch display.

    Display
    15-inch, 16:9, multi-touch, 1366×768
    Enclosure
    Compact IP66, stainless steel AISI 304
    Buttons
    IP66-rated, top-mounted layout
    Mounting
    Optional support arm or wall swivel, IP66, AISI 304
    Changeover
    Recipe changes scoped to your product with our engineers.

Discuss your product, recipe and line interfaces with our engineers.

Talk to our engineers

Field record · PACK EXPO International 2026

See the real machine.

Real machine footage from Chicago, with a separate rendering that shows the design. Choose Play to load either film.

Fig. 02Floor footageReal footage

A rexR delta robot picking on the conveyor inside the cell, filmed at the booth at PACK EXPO International 2026
The cell running on the floor at PACK EXPO International 2026.

Fig. 01Big screen filmRendering

Still from our big screen film: a rendering of the delta robot's parallel arms above the conveyor in a rexR cell
From our big screen at PACK EXPO International 2026, Chicago.
Drawing
Field record
Event
PACK EXPO International 2026
City
Chicago
Film
Rendering, from our big screen
Footage, photos
Real, taken at the booth
View the show-floor photographs

Fig. 03The booth, from the aislePhoto

The rexR booth at PACK EXPO International 2026, seen from the aisle: the What we offer wall, the rexR fascia, and rexR cells in the booth with visitors at the first one

Fig. 04The booth, from the far endPhoto

The rexR booth from the other end of the aisle: visitors talking at the tables, and rexR cells under the rexR fascia
How the line fits together

What rexR is

OEM equipment and palletizing integration.

  1. OEM

    We build the robotic cells.

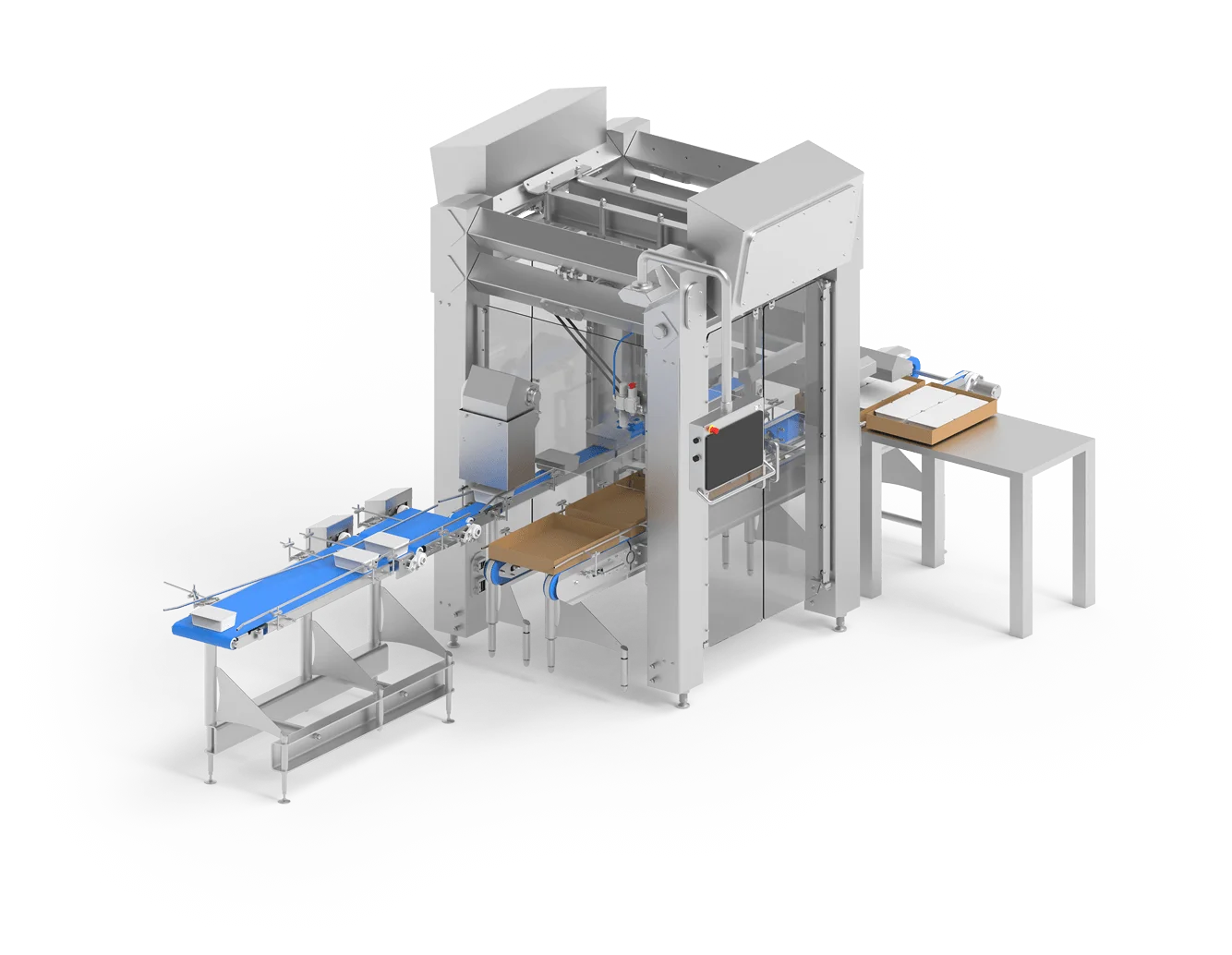

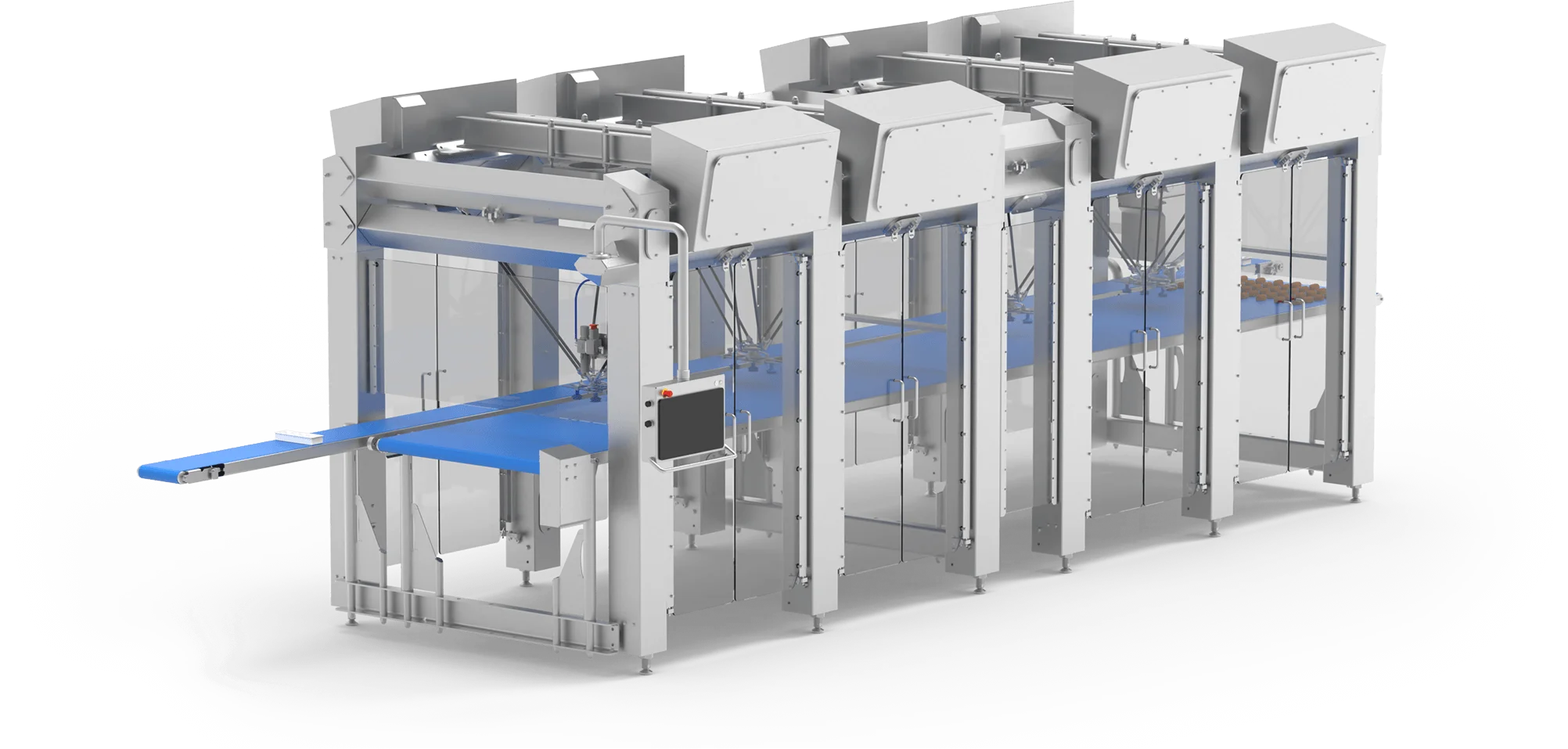

    rexR is an OEM of robotic cells for primary and secondary packaging: placing product into trays, cavity trays and thermoformer cavities, and packing finished product into corrugated boxes.

  2. Integrator

    We integrate palletizing.

    At the end of the line, rexR integrates robotic palletizing of finished boxes, so the line runs from product to pallet.

  3. AI vision

    We build our own AI vision.

    Quality control runs on vision rexR builds itself: 2D, laser 3D and shadowless imaging, with classical and deep learning algorithms and neural networks for label inspection.

From product to palletEnd-to-end product packing automation. Blue is what rexR builds or integrates.
A complete packing line: robotic loading into a thermoformer, thermoformer, metal detector, checkweigher with rejector, box erector, robotic packing into corrugated boxes, checkweigher labeler and rejector, and robotic palletizing of boxes. Robotic system for loadingproducts into a thermoformerrexR builds · primary packaging Metal detector Robotic system for packinginto corrugated boxesrexR builds · secondary packaging Checkweigher,labeler, rejector Thermoformer Checkweigherwith rejector Box erector Robotic system forpalletizing boxesrexR integrates · palletizing

Team

The people behind the machine.

Abe Alassaf

Abe Alassaf

Chief Business Development Officer

Wes Krasyuk

Wes Krasyuk

Head of Service

Svyat Stesin

Svyat Stesin

CEO

Headquartered in Columbus. Assembly in Athens County, Ohio.
